| Equipment information | Equipment specifications |
|---|---|

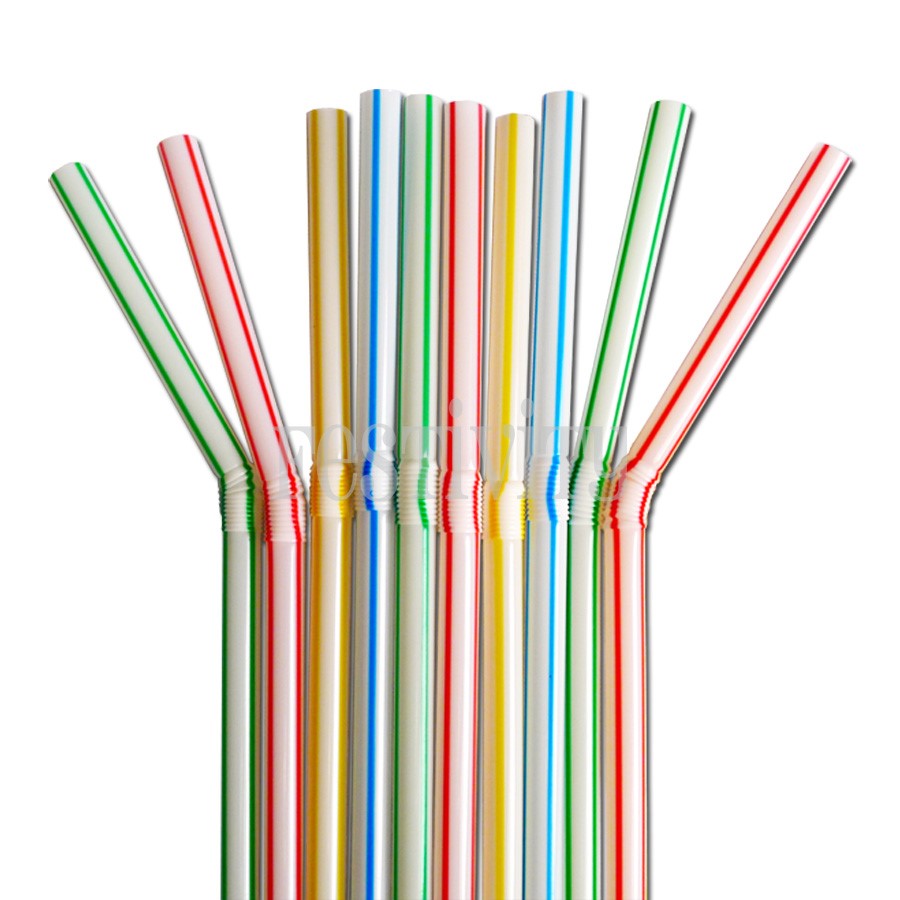

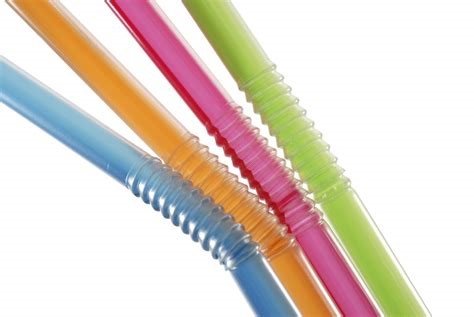

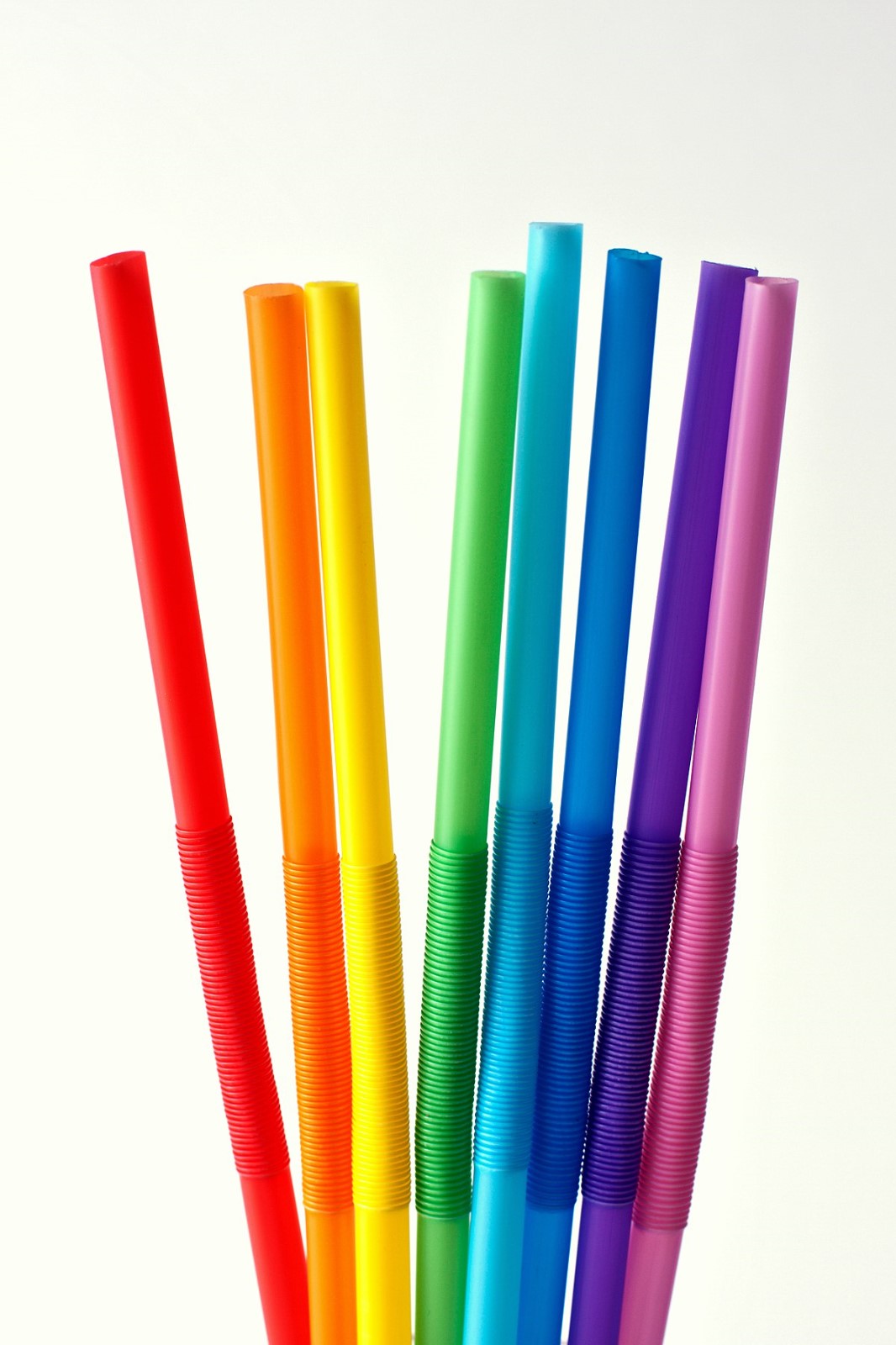

| Suitable product | Straw |
| Material of product | Plastic |
| Industry | Straw |
| Function of equipment | Straw bending |
| Type of equipment | Full automatic |
| Description |

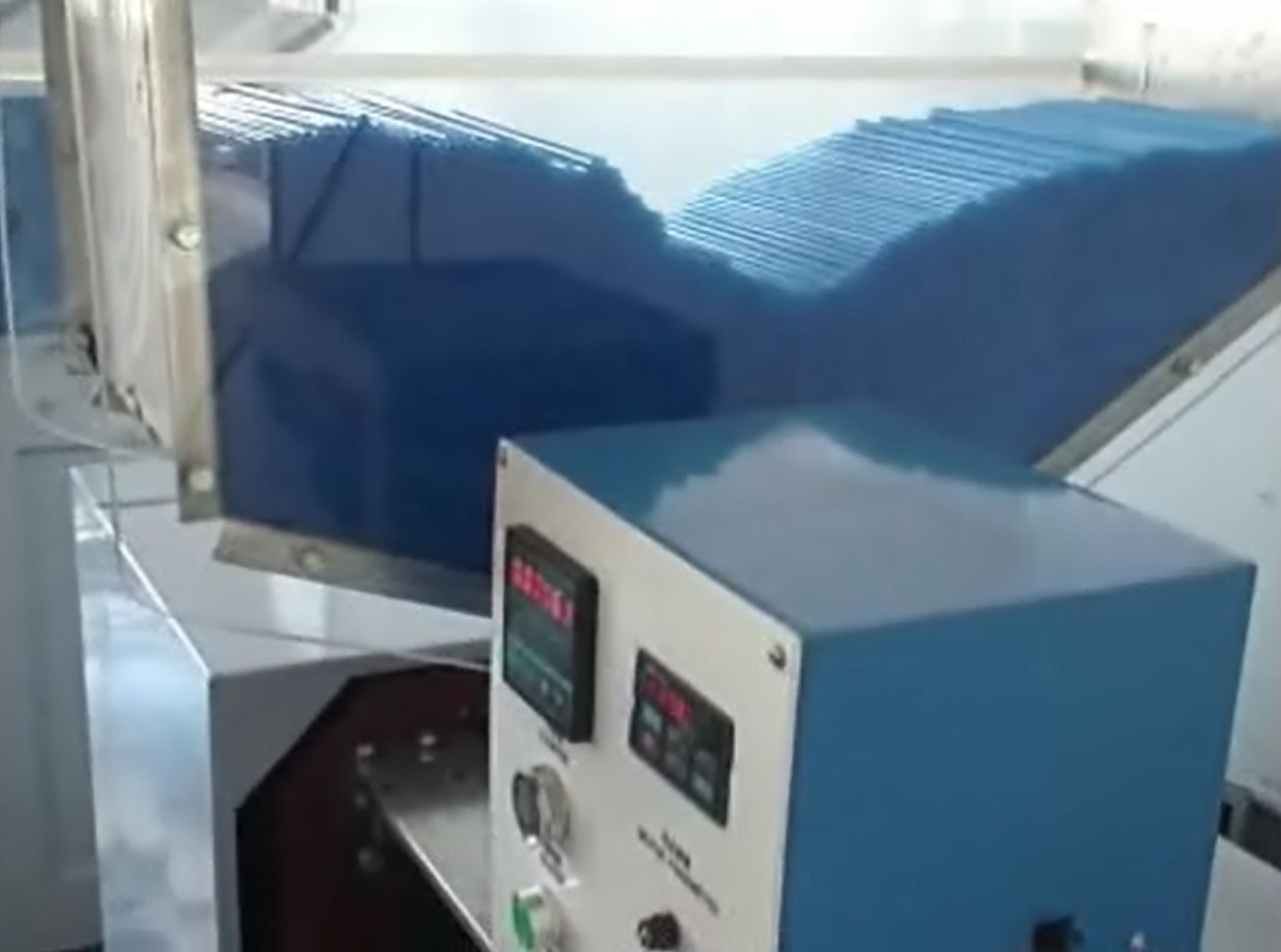

This production equipment is applied to form bending shape of straw. The equipment is running in high-speed operation, fully automated, which is very stable and greatly reduces the cost of production. Equipment can be used on different lengths of straws. Adjustable bending position and required length. Packaging machine is available for packing. |
| Working principle |

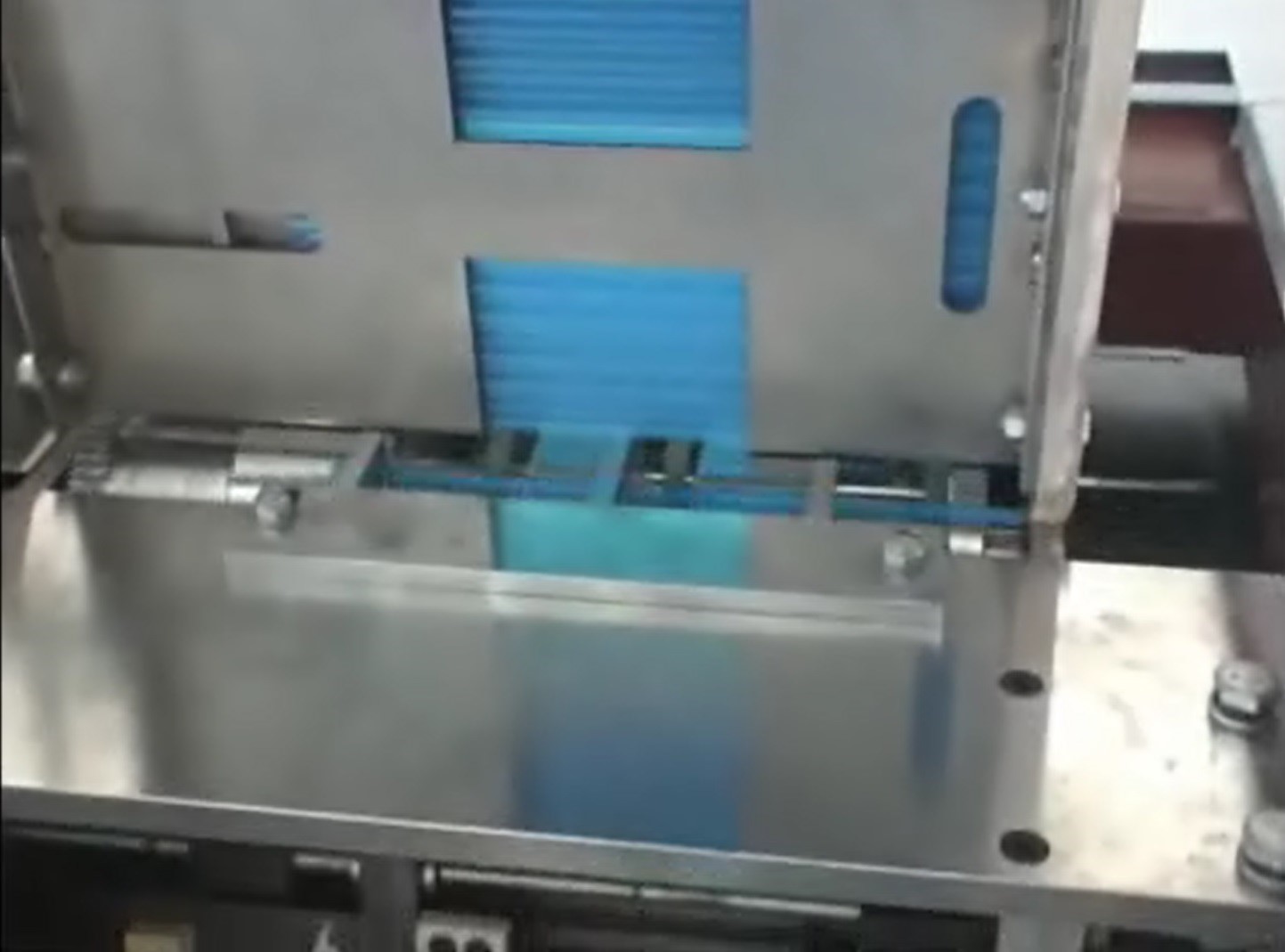

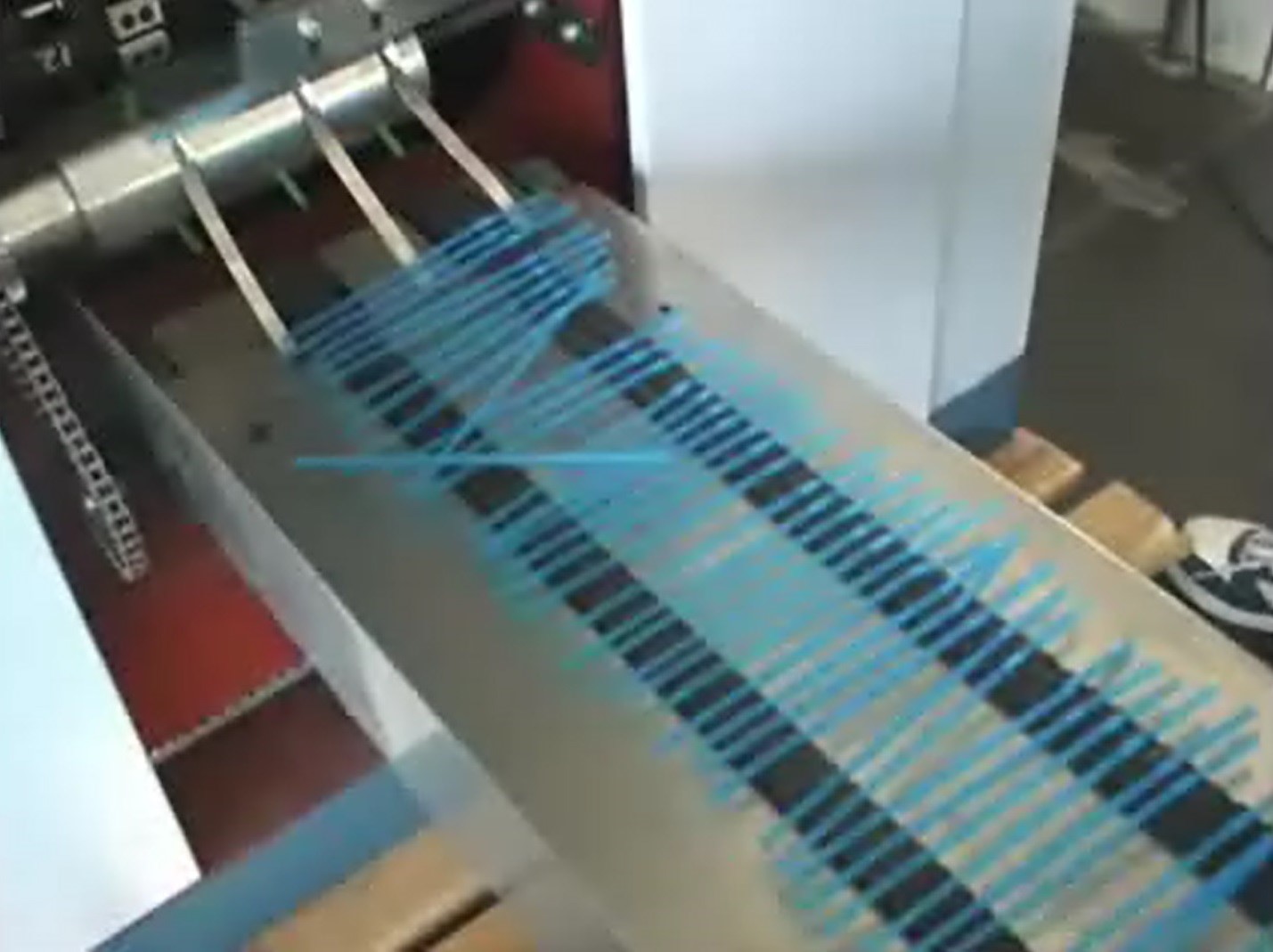

1. Fill up straw into machine 2. The dispensing mechanism automatically feeds single piece of straw into rotating table 3. Forming the required shape 4. Finished products enter to a conveyor belt fro packing |
| Speed | 120 pieces per minute |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 3.0m x 2.0m x 2.0m |
| Major components |
Cylinder: SMC Guide rail: HIWIN Sensor: OMRON, KEYENCE PLC: MITSUBISHI |
| Structure of equipment |

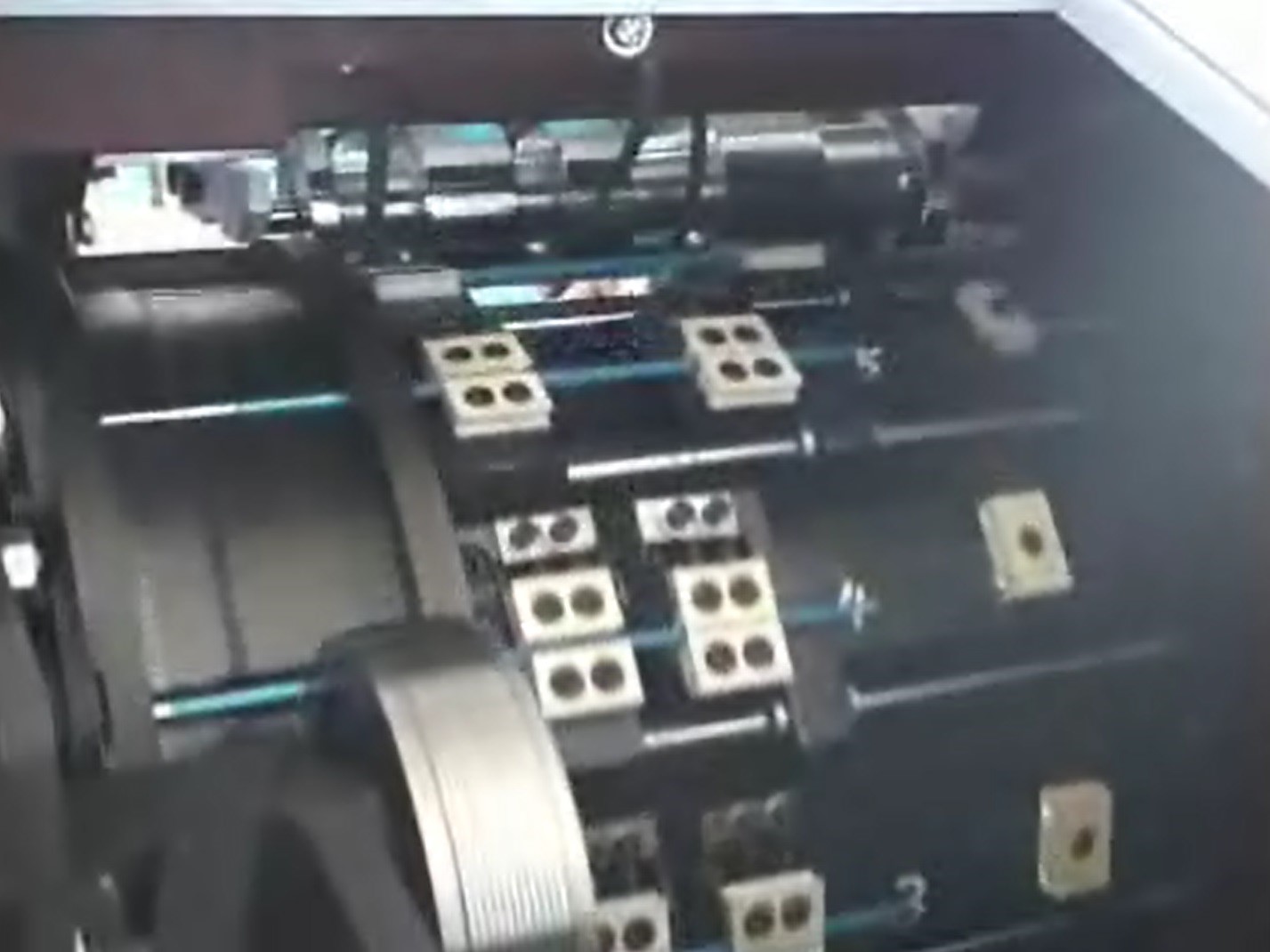

Straw filling device, dispensing device Roller bending forming device Finished material feeding device and conveyor belt Machine framework and other structural components Pneumatic control system, electronic control and man-machine interface |
