| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Small components, Sizer |
| Material of product | Plastic |
| Industry | Plastic Digital inkjet printing |
| Function of equipment | Extrusion, Inkjet printing |
| Type of equipment | Full automatic |
| Description |
This production equipment is used for extrusion and digital inkjet printing on sizer. Equipment including extruder, vacuum feeder, extrusion die, pulling system, cooling system, cutting machine. Printing with digital inkjet technology. Changing print fonts from software font library. Saving time. Stable extruding speed and accurate product dimensions. The equipment is stable in operation, reasonable in design, easy for colour change. The equipment can be equipped with a fully automatic packaging machine to save packaging costs. |
| Working principle |

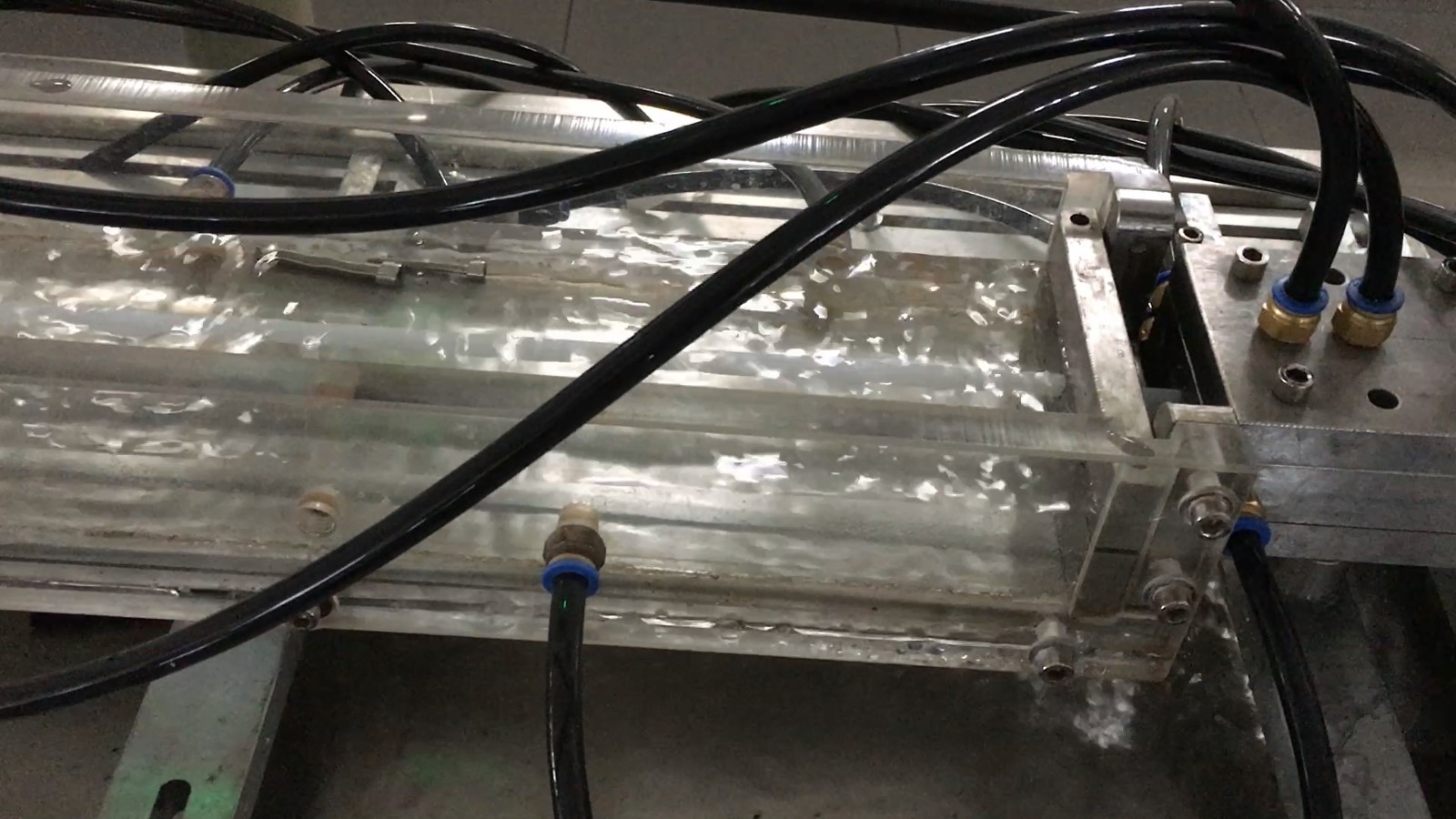

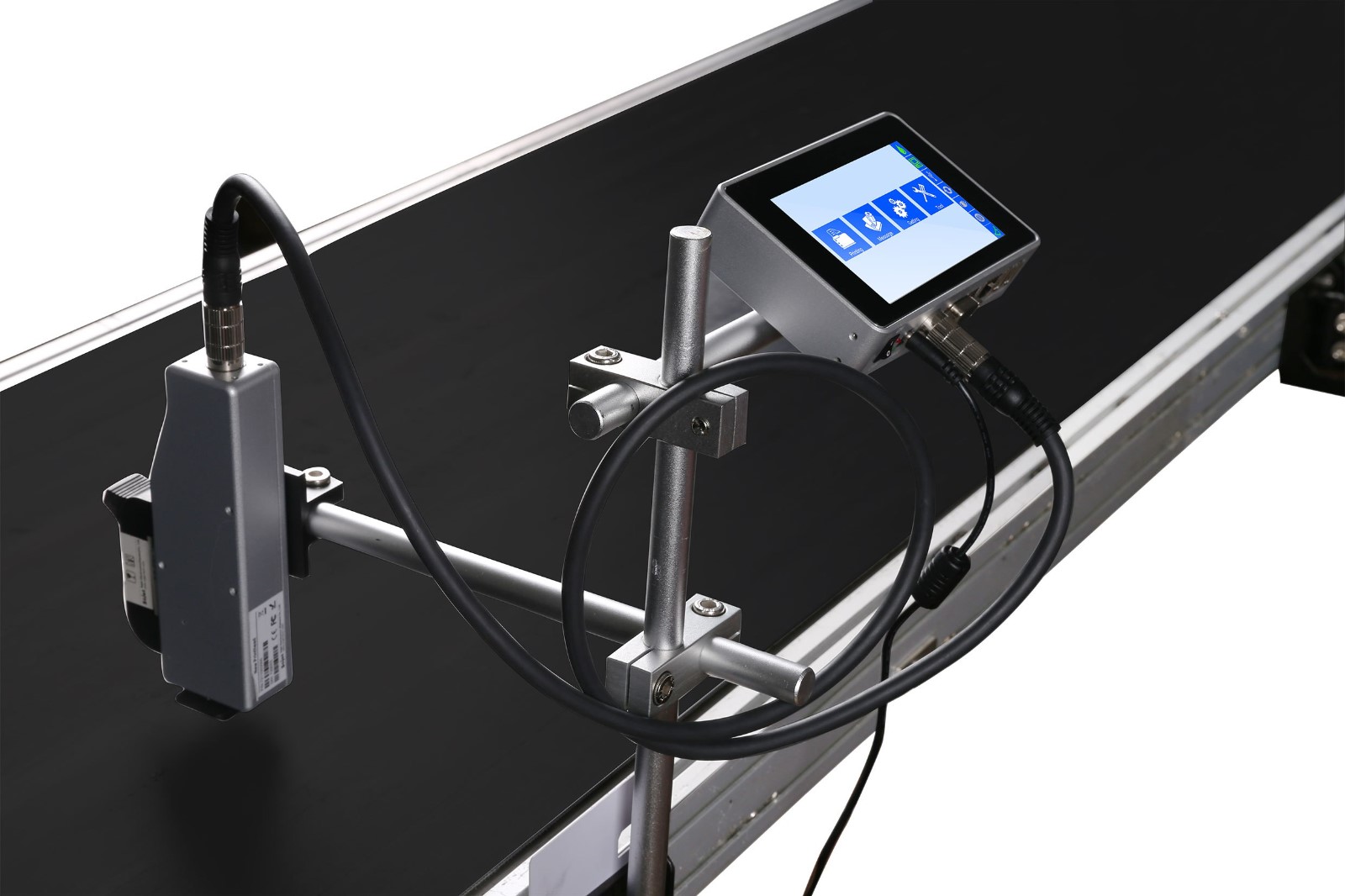

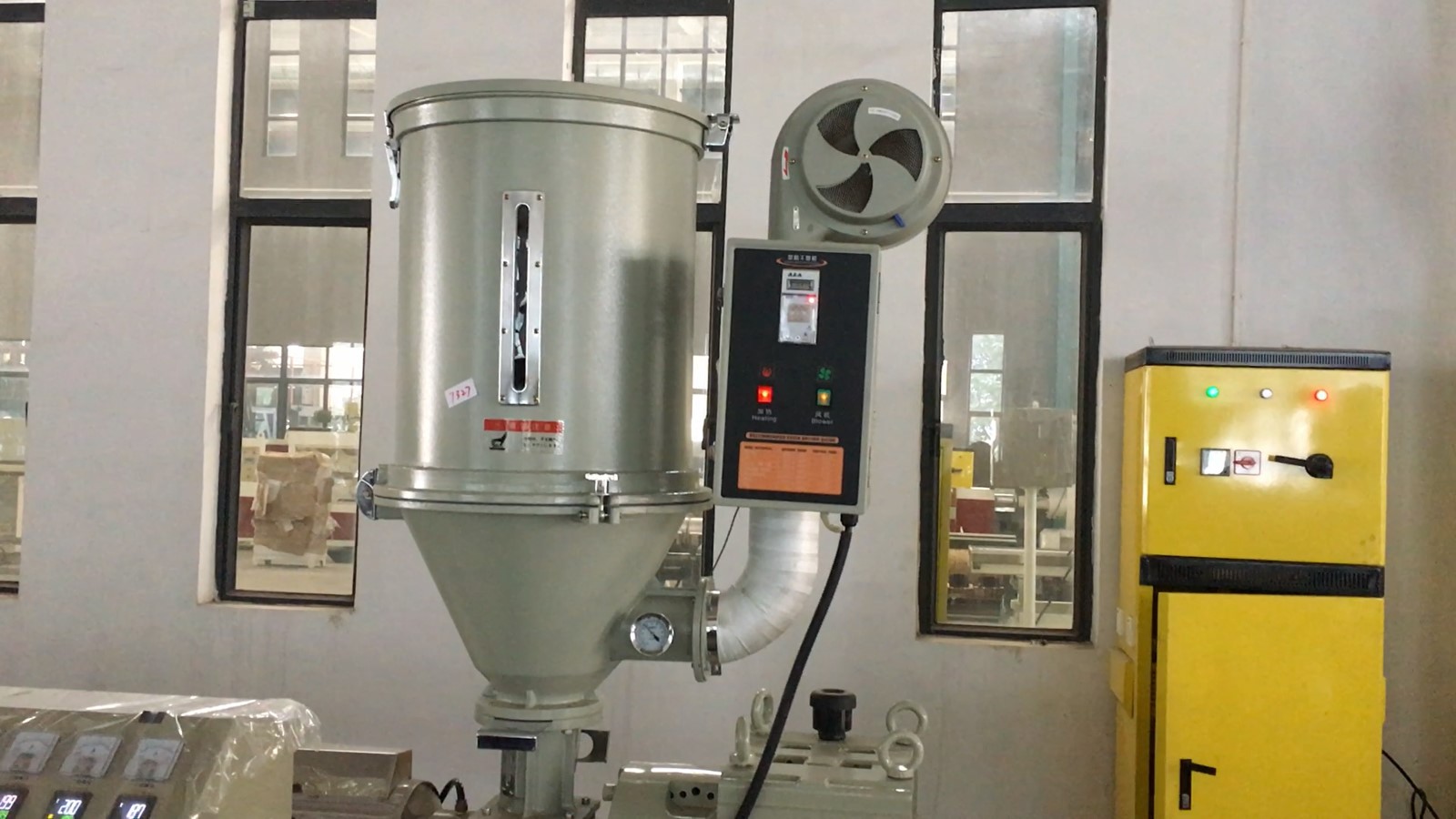

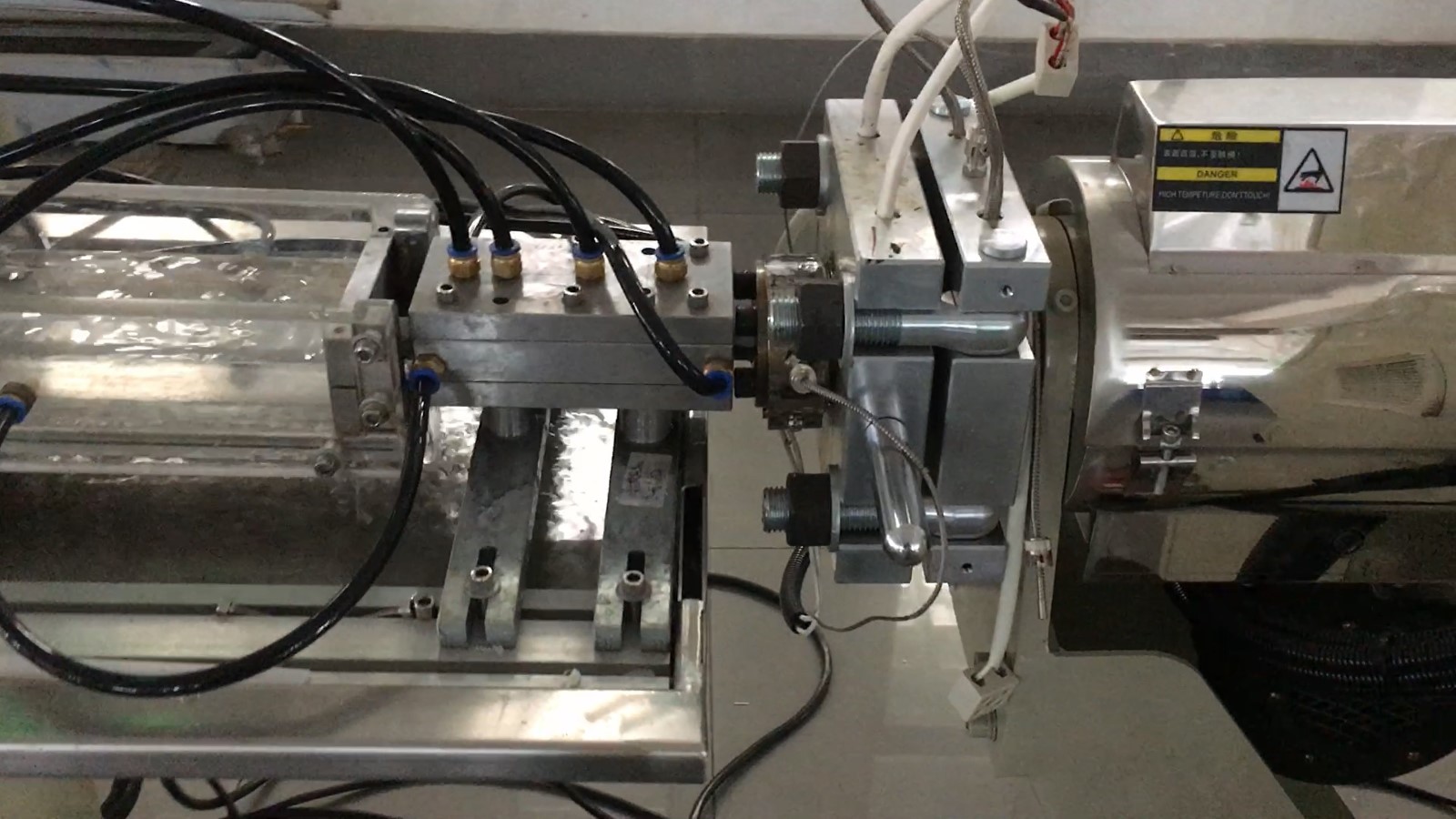

1. Resin fills up into extruder by vacuum feeder. 2. Resin melt by extruder barrel and extrudes out from extrusion die. 3. Profile of sizer formed by extrusion die and cool down by cooling system. 4. Completely cool down by cooling system 5. Inkjet printer printing font on sizer by inkjet 6. Finished product after cutting |
| Speed | 220 - 240 pieces per minutes |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | 3-plase 380V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 10.0m x 3.0m x 3.0m |
| Major components |

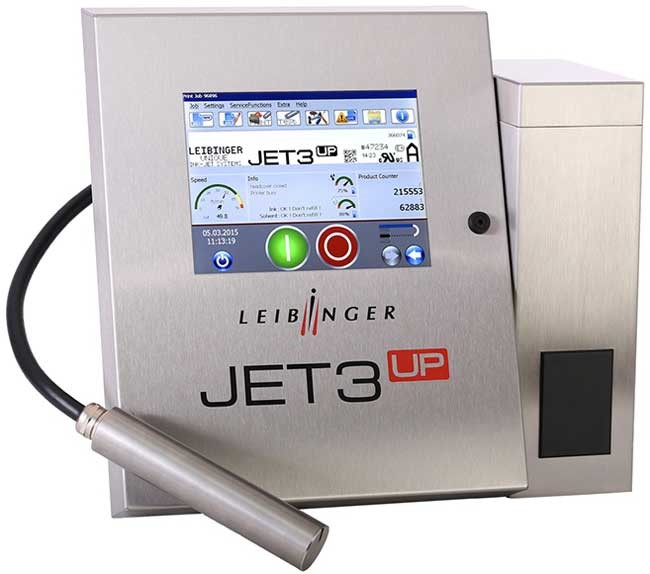

Extruder screw: φ55 Tooth box: Chinese standard Feeder: Vacuum suction Extrusion die: made according to customer drawings Motor: Siemens Controller: TAIWAN DELTA Sensor: Japanese Omron Digital inkjet machine: Germany |
| Structure of equipment |
Φ55 extruder Vacuum feeder Extrusion die Pulling system Sensors and encoder Inkjet printers cooling system |
