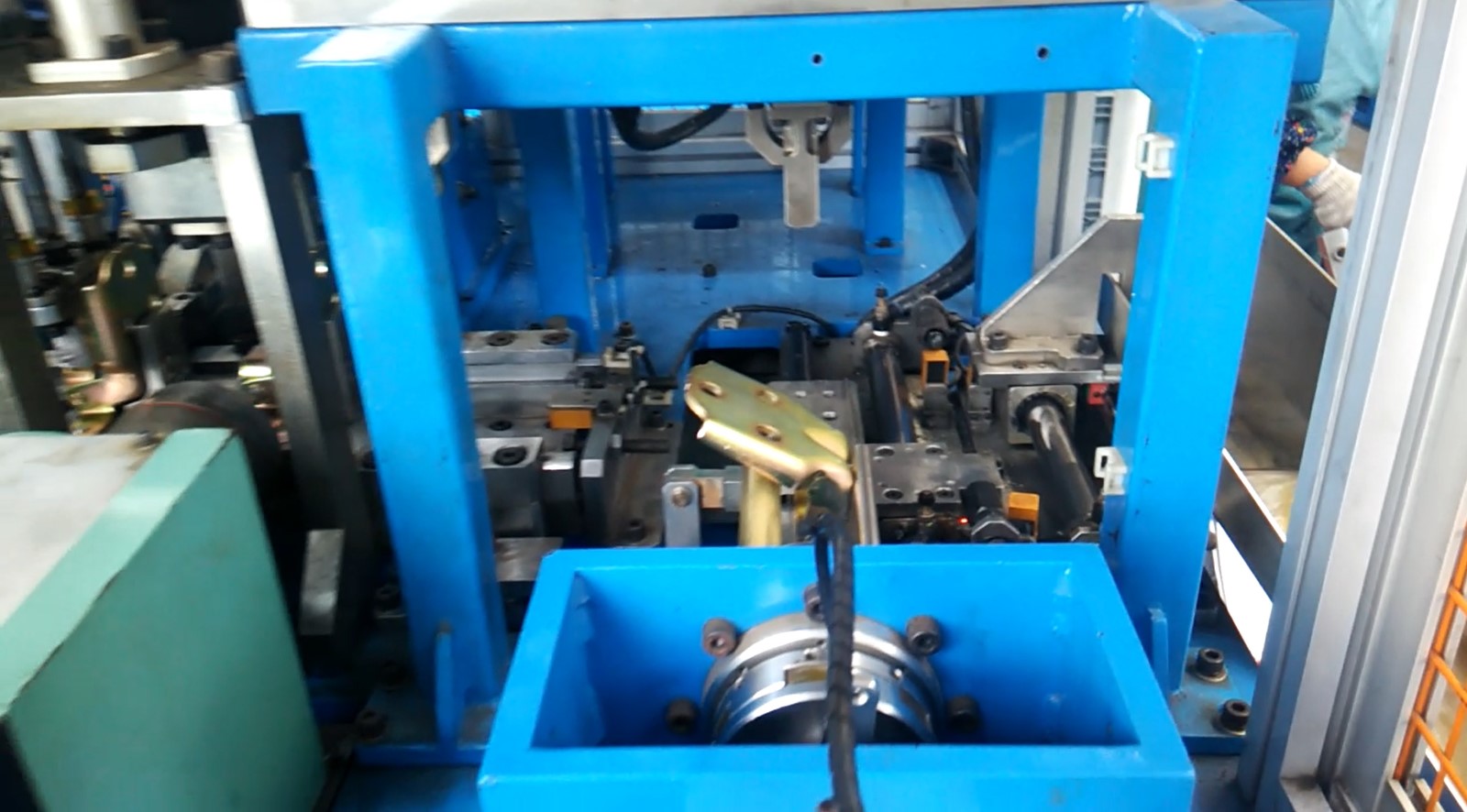

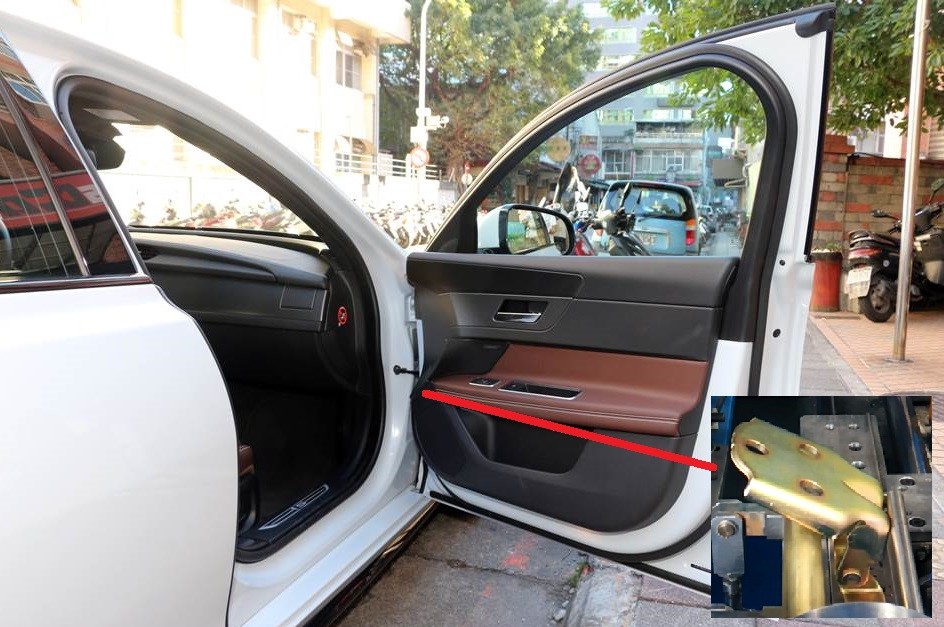

| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Door hinge |
| Material of product | Metal |
| Industry | Car |
| Function of equipment | Quality check |
| Type of equipment | Fully auto |
| Description |
This production equipment is applied to the torque test of car door hinge. It is an equipment for 100% quality inspection of products. The inspection, loading and unloading actions are continuously performed synchronously, eliminating the waiting time of each process. The equipment is running in high-speed operation, fully automated, which is 100% quality inspection than traditional manual, saving time and labor costs. Quality inspection in an automated manner, accuracy is more precise and more stable than manual. |
| Working principle |

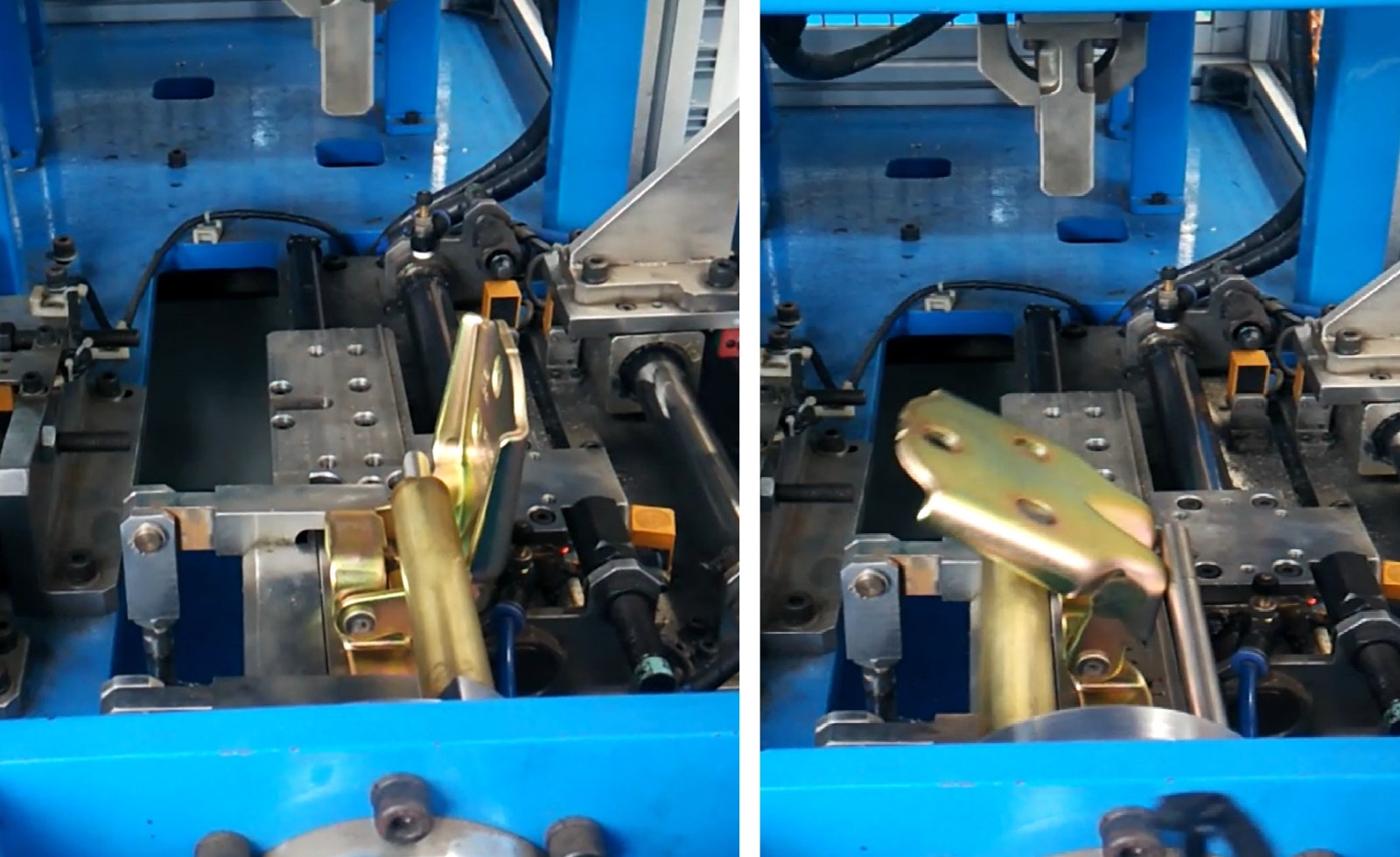

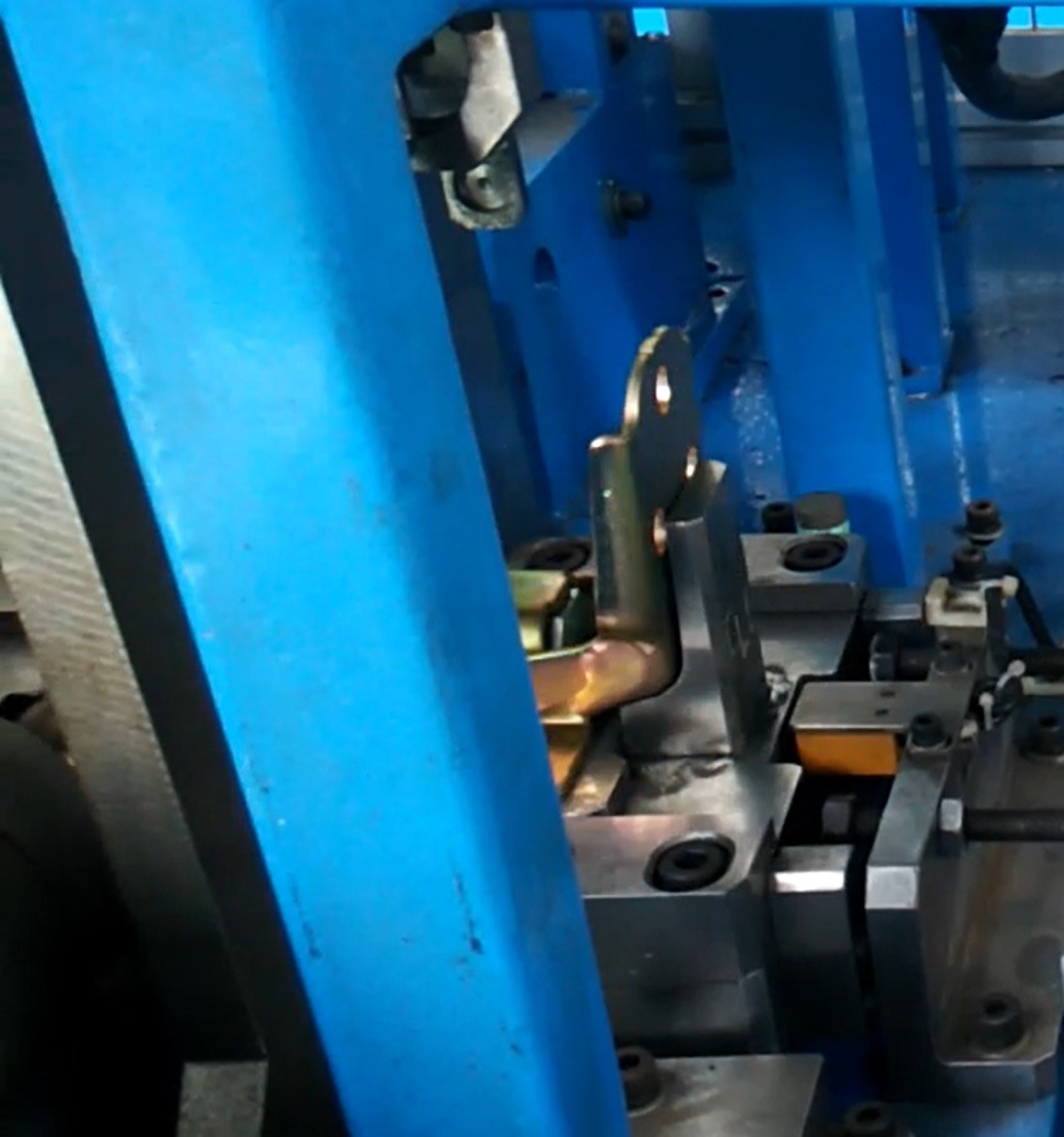

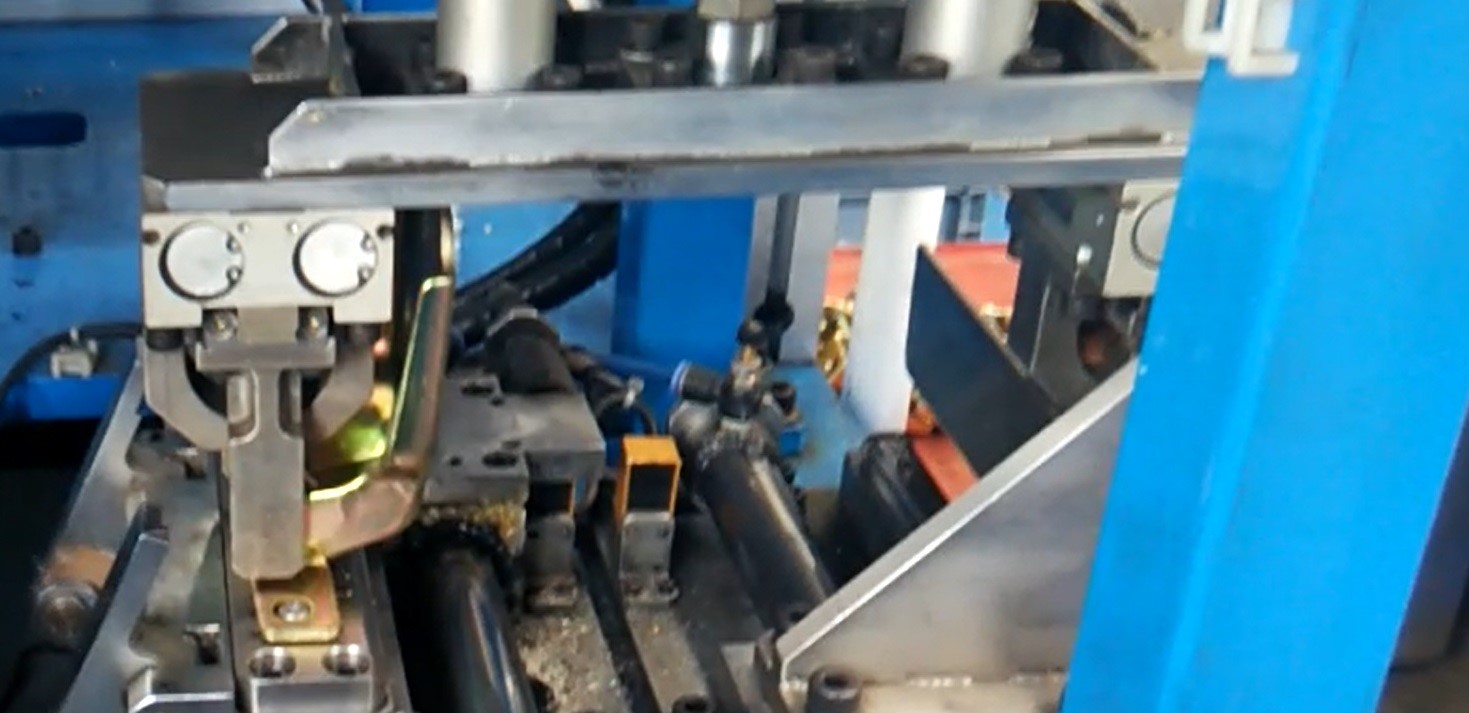

1. Door hinges are automatically aligned and enter into fixture 2. Robot puts the door hinge into a testing station 3. The door hinge is bent to perform the torque test 4. According to the test results, the finished product is automatically separated to the finished box and the defective box |
| Speed | 5 - 6 pieces / min |
| Mode of operation | Automatic, Touch screen manual, Touch screen parameter settings |
| Power supply | Single plase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 1.2m x 1.5m x 1.4m |
| Major components |
Cylinder: SMC Guide rail: HIWIN Sensor: OMRON, KEYENCE PLC: MITSUBISHI |

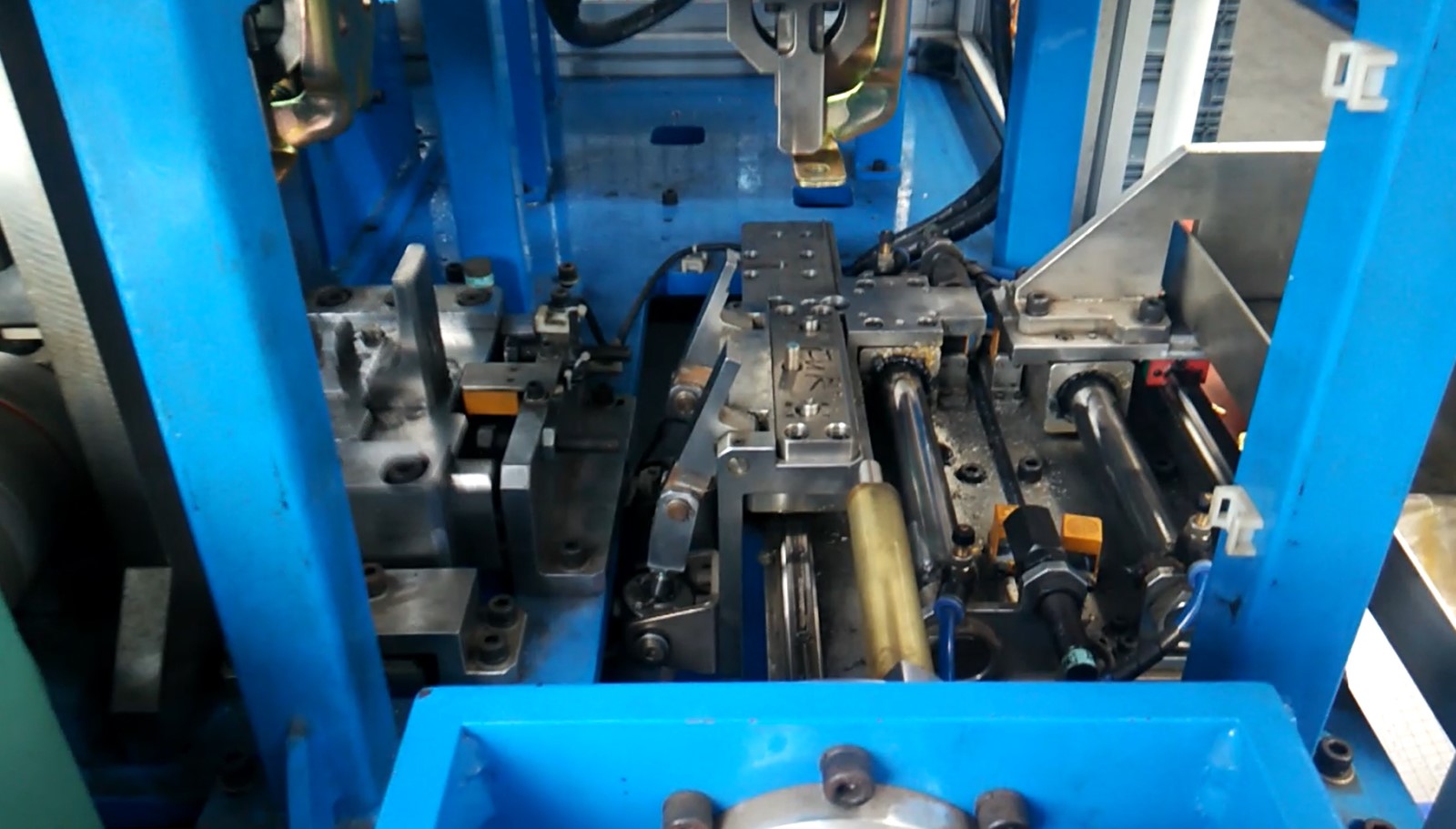

| Structure of equipment |
Feeding device Torque test device Robot Blanking transfer machine Air control system Machine framework and other structural components Pneumatic control system, electronic control and man-machine interface |
