| Equipment information | Equipment specifications |
|---|---|
| Suitable product | Breathing aid mesh cloth chip |
| Material of product | Fabric |
| Industry | Medical |
| Function of equipment | Production, Quality check, Packing |
| Type of equipment | Full automatic |
| Description |

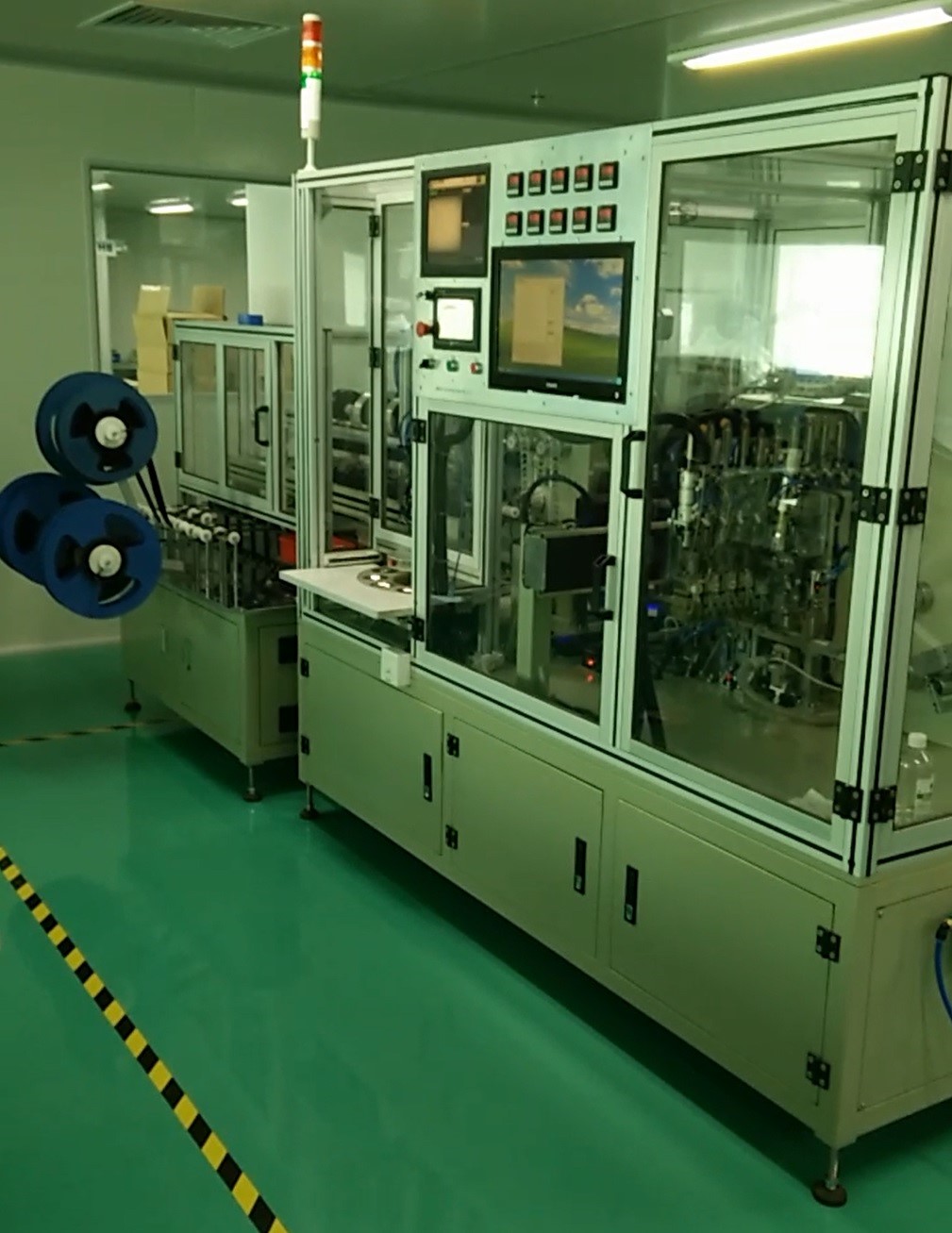

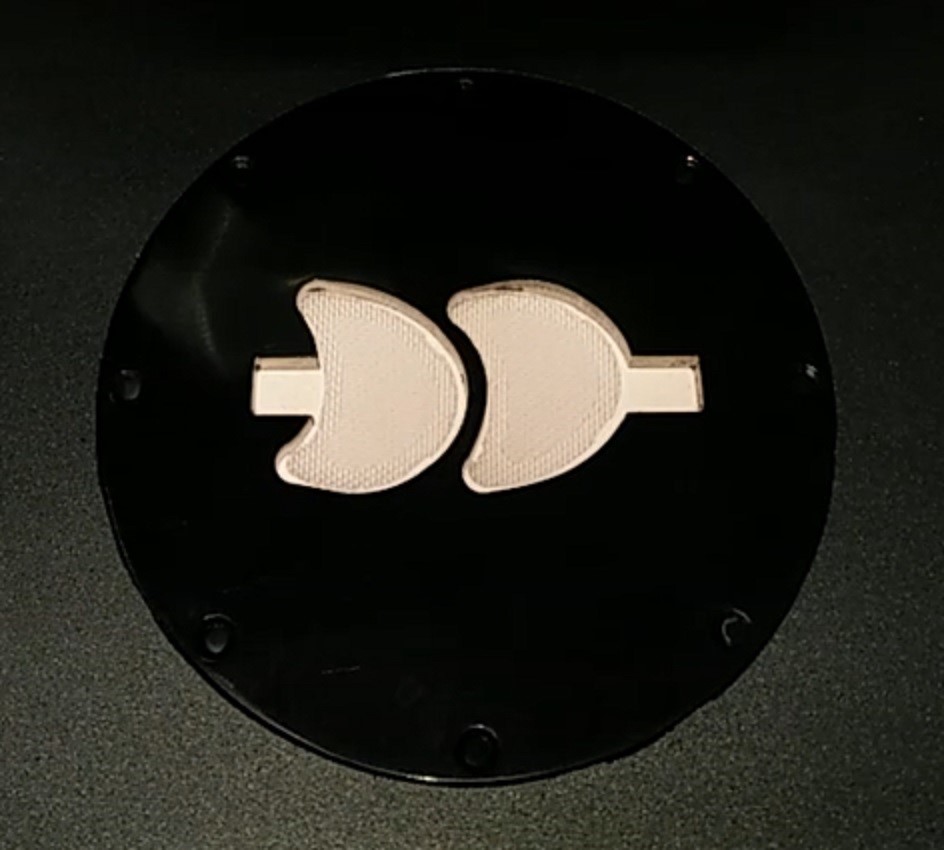

The mesh chip commonly used in medical breathing aids must have 100% air permeability to ensure that it does not affect the patient's breathing. This production line produces mesh chips, inspection and packaging in a fully automatic manner. |
| Working principle |

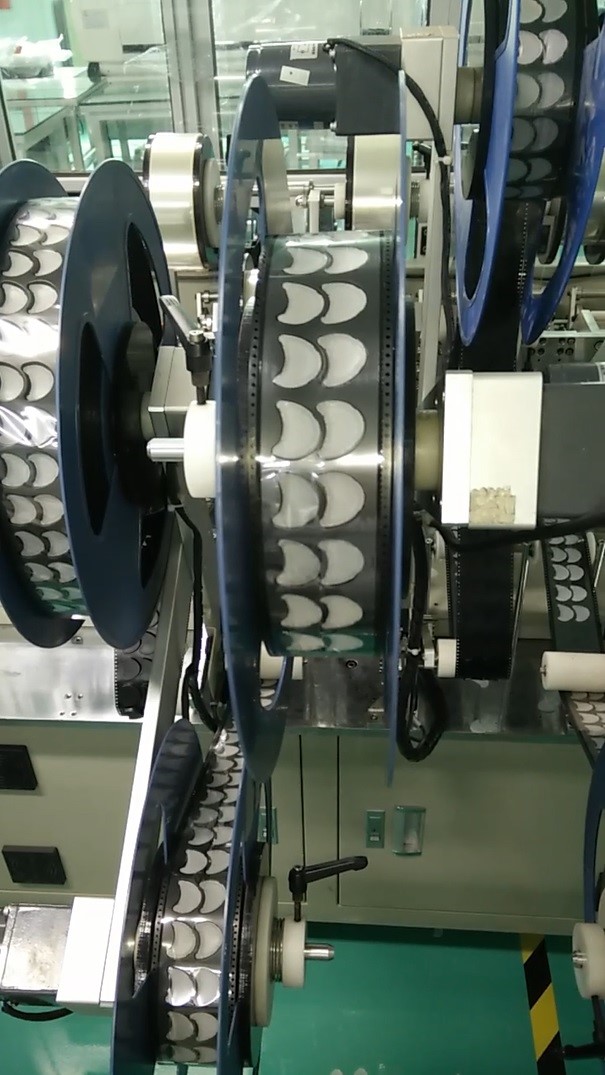

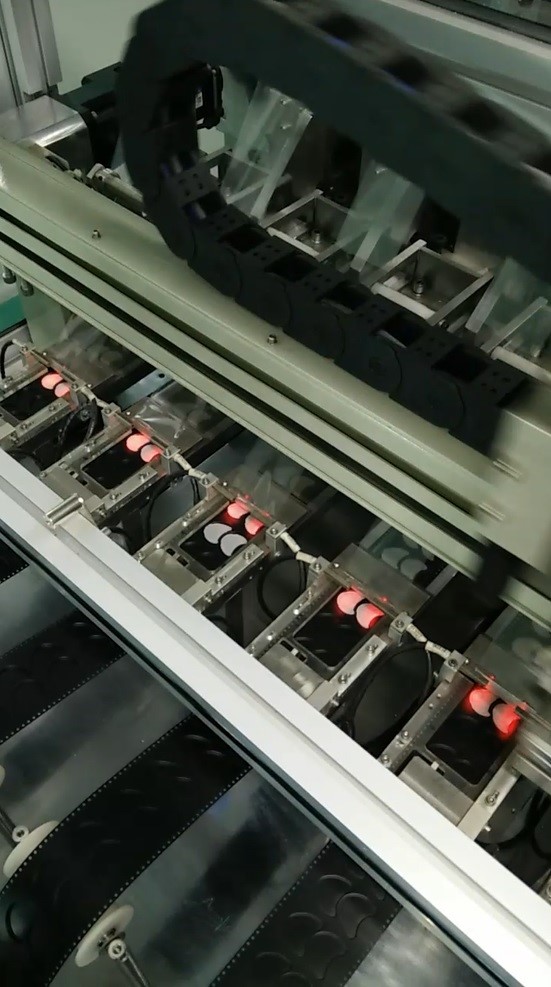

1. Pull out the original material and test its airflow characteristics according to the set distance. 2. According to the airflow characteristic value, melt it into different shapes with different fuse heads 3. After cooling and molding, test the airflow characteristic value again to judge whether it is 100% qualified. 4. Automatically sort according to airflow characteristic values, load into different braids 5. Automatically pack the mesh package |
| Speed | 5-6 pieces/minute |

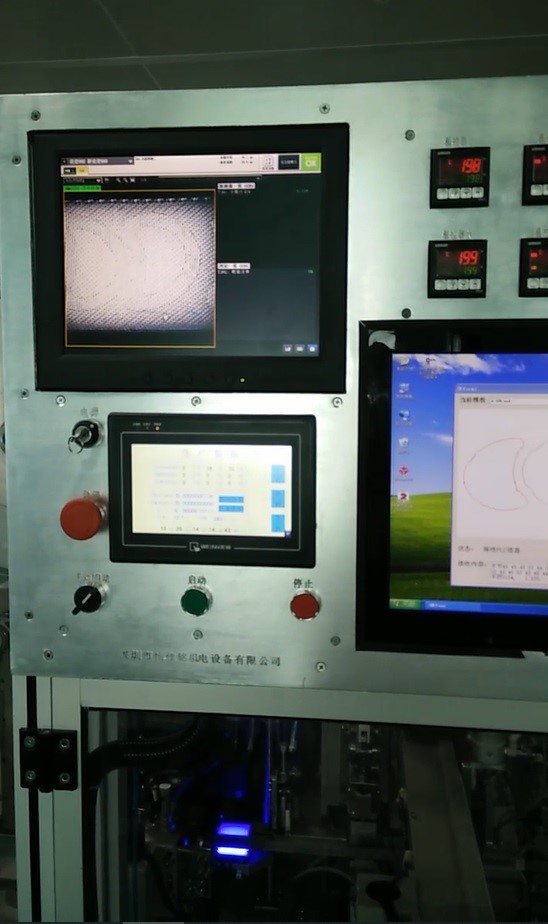

| Mode of operation | Fully automatic, Touch screen manual, Industrial computer upper data management |
| Power supply | Single phase 220V |
| Air supply | 0.6Mpa |
| Equipment dimensions (Length x Width x Height) | 3.5m x 2.4m x 1.9m |
| Major components |
Air cylinder: SMC Guide rail: HIWIN Screw: HIWIN Servo motor: SANYO Speed control motor: PANASONIC Sensor: OMRON, KEYENCE PLC: MITSUBISHISMC |
| Structure of equipment |

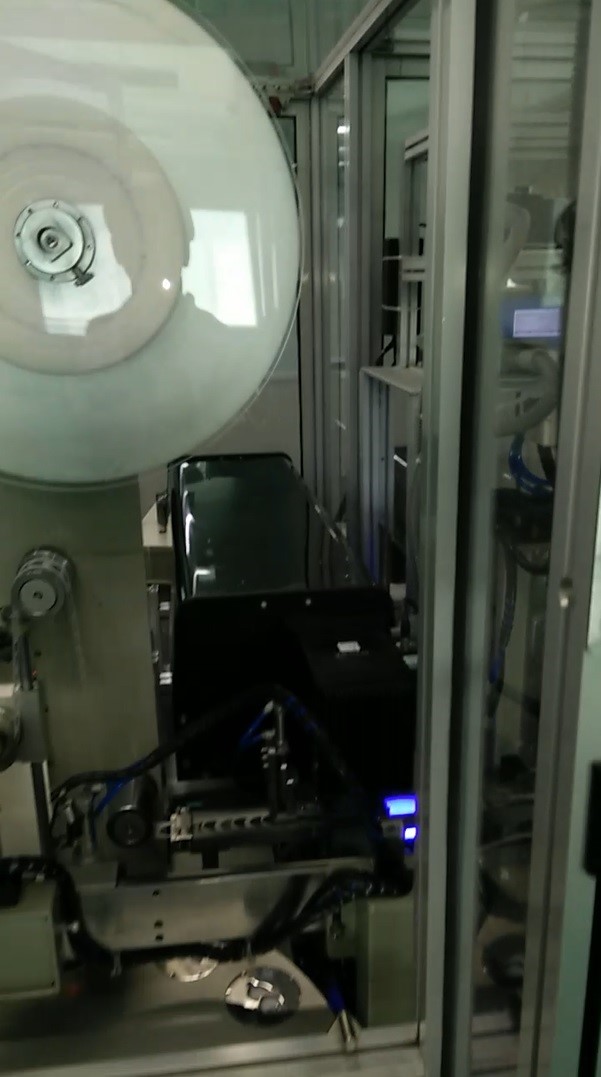

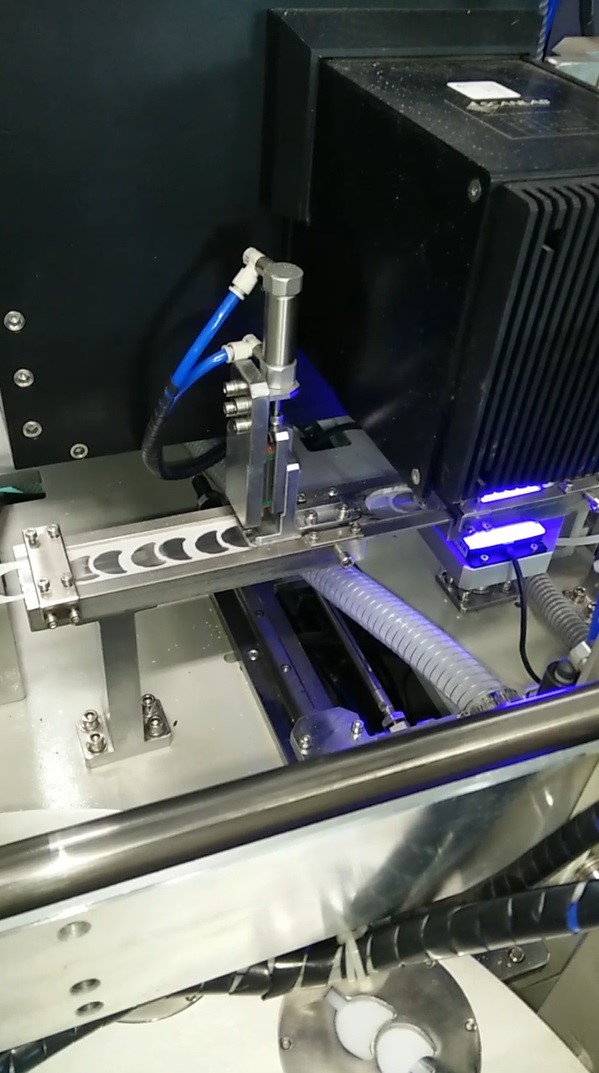

Feeding transfer machine Test device Rotary index table, turning fixtures Reset lever: press-in device, vibrating discharge device, split-level device Transfer machine, blank transfer machine, air control system Machine framework and other structural components Pneumatic control system, electronic control and man-machine interface |
